Customer-specific hydraulic units with superpowers from AROS Hydraulik

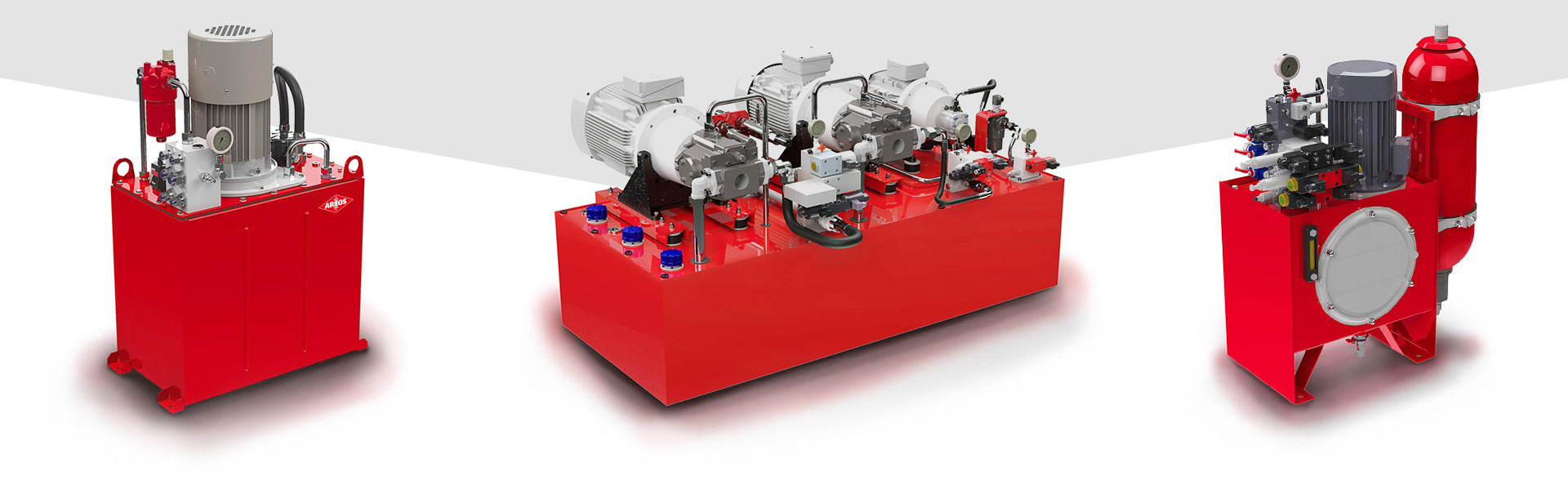

Hydraulic power units

The tailor-made superpower for hydraulic movements.
We manufacture hydraulic power units for almost all tasks in mechanical and plant engineering, including electronics and control, if required, ready for use.

Our goal: Aggregates that are optimally tailored to your area of application and deliver the required power efficiently and over a long timeOur goal: Hydraulic units that are optimally tailored to your area of application and deliver the required power efficiently and over a long period of time.

Thanks to our experience, we are also able to reduce noise emissions many times below the specified value of the work guidelines. It is also possible to produce units with ATEX CE marking. Large units with DNV approval, such as those used for transportation on oil platforms, are a specialty for our steel construction.
Power unit specification Sheet
(PDF)Frequently asked questions about AROS hydraulic units
Technical sales
Arthur Steier
Contact per mail
Contact by phone
View vCard
Technical sales
Raimund Hirschmann
Contact per mail
Contact by phone
View vCard

AROS hydraulic power units

Hydraulic power unit for AROS test bench
For hydraulic test bench
individual hydraulic power unit in drive technology for construction formwork
For formwork system
Custom hydraulic power unit for woodworking machine
For woodworking center
Individual hydraulic power unit for hydraulic steel construction from AROS Hydraulik
For hydroelectric power plant

Downloads for AROS hydraulic units

Hydraulic Power Unit Installation Explanation
language: German
Hydraulic Power Unit Installation Explanation
language: English
General operating and assembly instructions
language: German
General operating and assembly instructions
language: English

Hydraulic unit according to customer specifications

Tailored to your requirements
categories:

mobile hydraulic unit

stationary hydraulic unit

The full power of hydraulics is developed by an individual hydraulic unit. Here, the hydraulic fluid is pumped into the cylinder — ideally in a particularly quiet, efficient and maintenance-free and trouble-free manner. We provide you with the solution for, if you like, every aggregate state.
Request an individual hydraulic unitto the aggregate overview
specifications
  • Drive power: max. 70 kW
  • Pump capacity: max. 200 l/min
  • Operating pressure: max. 1000 bar
  • Tank volume: max. 3000 l
  • Connection size: max. NG25
equipment features
  • Quality components from European manufacturers
  • Individual valve blocks according to customer specifications
  • Proportional valves and controls possible
  • Mobile and stationary units possible
  • Electrical installation possible
  • Individual structures and housings according to customer requirements

Strengths of the AROS hydraulic unit

  • Individually tailored units and hydraulic system according to customer requirements
  • Design and delivery of complete hydraulic systems possible
  • Aggregate design in CAD (SolidWorks) with complete structure, parts list and circuit diagram
  • Energy-efficient design of the hydraulic circuit
  • Close customer support during planning during commissioning
  • High customer service, spare parts availability over decades

hydraulic unit for high-pressure test bench

for test tests up to 1000 bar
Category:  test bench
The hydraulic unit drives a test bench, which can be used to supply three parallel drives. There are three pump units with 54 l/min, 37 l/min and 7.8 l/min. The high-pressure unit supplies a pressure booster which a pressure of up to 1000 bar can build up. A programmable servo valve in NG10 is used to individually control the main drive.
Request your individual Power unitto the aggregate overview
specifications
  • Drive power: 22 / 12 / 5.5 kW
  • Flow rate: 54 / 37 / 7.8 l/min
  • Operating pressure: 210 / 290 bar
  • Tank volume: 800 l
  • Altitude link: NG6 NG10
equipment features
  • Three drives with two load sensing axial piston pumps
  • High pressure gear pump for pressure booster
  • Programmable Moog servo valve in NG10
  • AROS special valve block with valve technology for 1000 bar
Strengths of the AROS hydraulic unit for test stands
  • Implementation of three parallel drives — Auxiliary drives can be driven or lateral forces can be simulated on the main test cylinder
  • Programming of individual simulation processes on the servo valve — Offers maximum flexibility when adapting to various inspection and test requirements.
  • High-pressure testing up to 1000 bar — Enables overload tests on hydraulic cylinders or simulation of customer complaints.

Hydraulic unit for a fully automated formwork system

Drive technology for formwork in tunnel construction
Category:  construction technology
The unit controls four pressure cylinders, which must run synchronously with each other. They will electronically monitored and readjusted. The hydraulic cylinders press evenly round formwork elements against a tunnel wall, which allows them to be centered without errors.
Request your individual Power unitto the aggregate overview
AROS hydraulic power unit with special valve block
Enlarge image
specifications
  • Drive power: 11 kW
  • Flow rate: 28 l/min
  • Operating pressure: 210 bar
  • Tank volume: 600 l
equipment features
  • Individual housing according to customer requirements
  • Control cabinet by AROS — Terminal plan created and implemented
  • Electrical cabling of the components by AROS
  • Control with proportional directional valve type PSL
  • Use of gear flow sensors for synchronous cylinder movement
Strengths of the AROS unit for construction technology
  • Customer-specific control with special valves — Enables precise control and optimal adjustment to specific requirements.
  • AROS special valve block — The compact and integrated design offers significant space advantages.
  • Customer-specific housing for construction site use — Protects reliably against external influences and ensures a long service life in heavily polluted environments.

Drive unit for woodworking center

Hydraulic unit for driving the processing axes
Category:  woodworking
The hydraulic unit drives the processing axes of a wood milling center. In doing so, high travel speeds, i.e. high volume flows, are required. Due to the limited space available, a narrow special tank And a AROS special valve block for use.
Request your individual drive unitto the aggregate overview
AROS hydraulic power unit with high-pressure filter and special motor for woodworking machine
Enlarge image
specifications
  • Drive power: 9.5 kW
  • Flow rate: 30.4 l/min
  • Operating pressure: 100 bar
  • Tank volume: 100 l
  • Frequency: 87 Hz
equipment features
  • AROS special block
  • Integrated high-pressure filter
  • AROS special tank
  • AROS special motor
Strengths of the AROS unit for wood processing centers
  • Special construction for confined spaces — Enables reliable use even in limited spaces.
  • Customer-specific motor control — Ensures optimized power adjustment to the respective application, without any additional external frequency converter.
  • Special connection block design — Enables a more compact design compared to the standard program and facilitates integration into existing systems.

hydraulic power unit for hydroelectric power plant

Drive unit for raising and lowering a rake
Category:  steel hydraulic engineering
The hydraulic unit drives three cylinders: the reciprocating cylinder, the tilting rake cylinder and a maintenance cylinder for mechanical locking. All cylinders can be controlled both electrically and manually. In addition, the unit is equipped with a Bubble tank for one-time emergency operation.
Request your individual Power unitto the aggregate overview
AROS hydraulic power unit for hydropower plant with special height link
Enlarge image
specifications
  • Drive power: 4 kW
  • Flow rate: 16 l/min
  • Operating pressure: 130 bar
  • Tank volume: 60 l
  • 20 l bladder tank
equipment features
  • Bladder reservoir with filling valve block
  • AROS special height linking for customer-specific control
  • Compliance with steel hydraulic engineering regulations
  • Pressure-monitored computer cylinder control
Strengths of the AROS unit for hydraulic steel construction
  • Robust construction for hydraulic steel construction in accordance with DIN 19704 — Ensures maximum stability and safety, even under extreme operating conditions
  • Fail-safe design — Ensures reliable operation, even in the event of unforeseen faults
  • Manual emergency operation with manual switch — Enables safe operation even in the event of a malfunction or power failure.
  • Failure safety due to emergency operation with bubble storage — Ensures the function of the system even without an energy supply.

Frequently asked questions about AROS hydraulic units

What is a hydraulic unit?

A hydraulic unit is a compact unit for generating hydraulic energy, which consists of a pump, motor, tank and valves.

How does a hydraulic unit work?

The pump sucks liquid out of the tank, creates pressure and transfers it via valves to consumers, such as cylinders.

What are the main components of a hydraulic unit?

The core parts include motor, pump, hydraulic oil tank, filters, valves and accessories such as coolers or sensors.

Which technical data is important?

Pressure (bar), flow rate (l/min), output (kW), tank size and operating voltage are decisive.

How do I select the appropriate hydraulic unit?

Take into account the pressure, the flow rate (the volume flow), the movement cycle and the size of your drive units as well as the environmental conditions.

How do you calculate the required power for a hydraulic unit?

Use the following formula:
Power (kW) = (flow rate (l/min) × pressure (bar))/600.

Where are hydraulic units used?

They are typically used in industry and in classic mechanical engineering. They are used to achieve high forces with a compact design (presses, conveyors, etc.). In some cases, hydraulic units can also be found in large vehicles and mining equipment (conveyor belts for ore).

What are the benefits of AROS hydraulic units?

High power density in a small installation space. In addition, the acquisition costs are low and the technology is developed, tested and available worldwide. This makes it possible to implement even complex controls and movement patterns.

How is a hydraulic unit serviced?

The oil, as well as the filters, must be checked and changed regularly. The temperature is monitored and a regular functional test of the valves must be carried out.

Which hydraulic oil is suitable?

Select it based on viscosity, temperature range, and compatibility with seals and materials. Mineral hydraulic oils such as HLP 32 or HLP 46 are most commonly used.

What types of hydraulic units does AROS Hydraulik produce?

Stationary and mobile hydraulic units.

Why are AROS hydraulic units a good choice for industrial applications?

- Extremely robust construction
- Many years of experience in hydraulics
- We are a system supplier: Aggregate, cylinder and fasteners come from a single source
- Compliance with special standards or factory regulations is possible by arrangement
- Weltweite Erstatzteilverfügbarkeit

What equipment options are available with AROS hydraulic units?

Just about anything possible.

Does AROS also produce special solutions in small quantities?

Yes, that is the strength of AROS. We focus on small and medium-sized series in aggregate construction.

What information is required to design a hydraulic unit?

All required information can be viewed and completed in our Specification sheet PDF.
